Unity节点编辑器(五) -- 引导遮罩

遮罩需求

目前市面上游戏的引导，基本上都采用了在需要突出的地方高亮引导玩家，通过点击等方式去触发下一步操作。所以需求就抽象成两个：
1.高亮某一块区域
2.高亮区域的点击判断和通知

高亮区域实现

高亮区域有多种做法，第一种是通过继承Unity的BaseMeshEffect去自己写顶点、三角面最后形成高亮，第二种是使用Shader通过像素的判定实现。第一种比较里面的逻辑比较复杂，所以我用的是第二种。

矩形高亮区域的C#代码

实现一个矩形高亮区域需要两个数据：矩形的中心和大小。为了使用同一个材质实现合批，我使用一个继承于BaseMeshEffect的类中(Unity提供的类不熟悉的可以查一下)，在类中把这两个数据写入每个顶点中。

顶点处理基类

重写ModifyMesh方法，在其中使用抽象方法SetVertexData，传入顶点数据，并重新赋值出来。

public abstract class MaskVertexBase : BaseMeshEffect
{
    public override void ModifyMesh(VertexHelper vh)
    {
        if (!IsActive())
            return;

        // 准备临时列表
        List<UIVertex> vertices = new List<UIVertex>();
        vh.GetUIVertexStream(vertices);

        // 确保每个顶点都有UV2数据
        for (int i = 0; i < vertices.Count; i++)
        {
            UIVertex vertex = vertices[i];
            vertices[i] = SetVertexData(vertex);
        }

        // 清空并重新添加顶点数据
        vh.Clear();
        vh.AddUIVertexTriangleStream(vertices);
    }

    /// <summary>
    /// 设置顶点数据
    /// </summary>
    /// <param name="vertex"></param>
    /// <returns></returns>
    protected abstract UIVertex SetVertexData(UIVertex vertex);
}

矩形顶点类

在具体的矩形类中，把中心位置，高度和宽度放入顶点的uv1信息中。

public class RectMaskVertex : MaskVertexBase
{
    [Header("中心位置")]
    public Vector2 centerPos;
    [Header("宽度")]
    public float width;
    [Header("高度")]
    public float height;

    protected override UIVertex SetVertexData(UIVertex vertex)
    {
        vertex.uv1.x = centerPos.x;
        vertex.uv1.y = centerPos.y;
        vertex.uv1.z = width;
        vertex.uv1.w = height;

        return vertex;
    }
}

高亮区域的Shader代码

高亮逻辑有两步：
1.在顶点着色器中获得像素的屏幕坐标位置。因为挂载的材质是在Unity的UI中所以model空间坐标直接就是屏幕坐标。
2.在片元着色器中判断像素是否需要高亮。是否需要高亮则是对应的需求。如果是在一个矩形中，则需要判断这个像素坐标位置是否在其中，在则直接输出透明，反之输出源颜色。
下面给出矩形的实现。

 v2f vert (appdata v)
{
    v2f o;
    o.screenPos = v.vertex.xy;
    o.vertex = UnityObjectToClipPos(v.vertex);
    o.uv = TRANSFORM_TEX(v.uv, _MainTex);
    o.uv1 = v.uv1;
    o.color = v.color;
    return o;
}

fixed4 frag (v2f i) : SV_Target
{
    fixed4 col = tex2D(_MainTex, i.uv)*i.color;

    float2 centerPos = i.uv1.xy;
    float width = i.uv1.z / 2;
    float height = i.uv1.w / 2;

    float2 offset = i.screenPos.xy - centerPos;
    col.a *= (abs(offset.x) > width) || (abs(offset.y) > height);

    return col;
}

高亮区域的点击判断和通知

判断是否点击到了高亮区域，这个逻辑需要在C#端实现。在顶点处理基类中继承了IPointerClickHandler, IPointerEnterHandler, IPointerDownHandler, IPointerUpHandler, IPointerExitHandler, IPointerMoveHandler这几个接口去监听点击输入，并且抽象了一个判断是否在高亮区域内的委托，在具体的业务中添加进来。
只需要在点击的时候执行委托进行判定，若判定为true则通过eventSystem.RaycastAll(eventData, raycastResult)获得当前高亮后的，所有的可点击物体，然后遍历去执行第一个GameObject的点击。
下面给出完整的MaskVertexBase代码

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.EventSystems;
using UnityEngine.UI;

public delegate bool PointerEventCallback(PointerEventData eventData);

/// <summary>
/// 遮罩的定点类，负责设置遮罩的顶点数据
/// </summary>
[RequireComponent(typeof(Image))]
public abstract class MaskVertexBase : BaseMeshEffect, IPointerClickHandler, IPointerEnterHandler, IPointerDownHandler, IPointerUpHandler, IPointerExitHandler, IPointerMoveHandler
{
    [Header("向Shader传递的数据")]
    public AdditionalCanvasShaderChannels additionalCanvasShaderChannels;

    protected Canvas canvas;
    protected Camera uiCamera;
    protected RectTransform canvansRect;
    protected RectTransform rectTransform;
    [HideInInspector]
    public EventSystem eventSystem;
    [HideInInspector]
    public PointerEventCallback raycastLocationValid;

    private List<RaycastResult> raycastResult;

    private GameObject m_lastHoverGameObject;


    protected virtual void OnEnable()
    {
        base.OnEnable();
        if (canvas == null)
        {
            canvas = transform.GetComponentInParent<Canvas>();
            uiCamera = canvas.worldCamera;
            rectTransform = transform.GetComponent<RectTransform>();
            canvansRect = canvas.transform.GetComponent<RectTransform>();
            raycastResult = new List<RaycastResult>();
            AdditionalCanvasShaderChannels();
        }

    }

    public override void ModifyMesh(VertexHelper vh)
    {
        if (!IsActive())
            return;

        // 准备临时列表
        List<UIVertex> vertices = new List<UIVertex>();
        vh.GetUIVertexStream(vertices);

        // 确保每个顶点都有UV2数据
        for (int i = 0; i < vertices.Count; i++)
        {
            UIVertex vertex = vertices[i];
            vertices[i] = SetVertexData(vertex);
        }

        // 清空并重新添加顶点数据
        vh.Clear();
        vh.AddUIVertexTriangleStream(vertices);
    }

    /// <summary>
    /// 设置顶点数据
    /// </summary>
    /// <param name="vertex"></param>
    /// <returns></returns>
    protected abstract UIVertex SetVertexData(UIVertex vertex);

    /// <summary>
    /// 添加Canvas向Shader传递的数据
    /// </summary>
    protected virtual void AdditionalCanvasShaderChannels()
    {
        if (canvas == null)
        {
            return;
        }

        if (additionalCanvasShaderChannels == UnityEngine.AdditionalCanvasShaderChannels.None)
        {
            return;
        }

        if ((canvas.additionalShaderChannels & additionalCanvasShaderChannels) == 0)
        {
            canvas.additionalShaderChannels |= additionalCanvasShaderChannels;
            graphic.SetVerticesDirty();
        }
    }

    #region 对外方法

    public void SetEventSystem(EventSystem eventSystem)
    {
        this.eventSystem = eventSystem;
    }

    public bool GetLocalPointByScreenPos(Vector2 screenPos, out Vector2 localPoint)
    {
        if (RectTransformUtility.ScreenPointToLocalPointInRectangle(rectTransform, screenPos, uiCamera, out localPoint))
        {
            return true;
        }
        return false;
    }

    public bool GetLocalPointByWorldPos(Vector3 worldPos, Camera watchCamera, out Vector2 localPoint)
    {
        Vector3 screenPos = watchCamera.WorldToScreenPoint(worldPos);
        if (GetLocalPointByScreenPos(screenPos, out localPoint))
        {
            return true;
        }
        return false;
    }

    public Camera GetCanvasWorldCamera()
    {
        return uiCamera;
    }


    #endregion

    #region 点击实现
    private void CheckAndChangeHover(GameObject newHoverGameObject, PointerEventData eventData)
    {
        if (newHoverGameObject != m_lastHoverGameObject)
        {
            if (m_lastHoverGameObject != null)
            {
                ExecuteEvents.Execute(m_lastHoverGameObject, eventData, ExecuteEvents.pointerExitHandler);
            }

            if (newHoverGameObject != null)
            {
                ExecuteEvents.Execute(newHoverGameObject, eventData, ExecuteEvents.pointerEnterHandler);
            }

            m_lastHoverGameObject = newHoverGameObject;
        }
    }

    protected virtual GameObject PassEvent<T>(PointerEventData eventData, ExecuteEvents.EventFunction<T> function) where T : IEventSystemHandler
    {
        raycastResult.Clear();
        eventSystem.RaycastAll(eventData, raycastResult);
        bool isExecute = false;
        foreach (var result in raycastResult)
        {
            if (result.gameObject == transform.gameObject)
            {
                continue;
            }
            isExecute = ExecuteEvents.Execute(result.gameObject, eventData, function);
            return result.gameObject;
        }
        return null;
    }

    protected virtual GameObject CheckRaycastLocationValid<T>(PointerEventData eventData, ExecuteEvents.EventFunction<T> function) where T : IEventSystemHandler
    {
        if (raycastLocationValid != null)
        {
            bool isCanClick = raycastLocationValid.Invoke(eventData);
            if (isCanClick)
            {
                return PassEvent(eventData, function);
            }

            // 判断 function 是否指向 pointerClickHandler
            if (typeof(T) == typeof(IPointerClickHandler) &&
                function.Method == ExecuteEvents.pointerClickHandler.Method)
            {
                MessageSystem.Instance.SendMessage(MessageDefine.MASK_CLICK);
            }
        }
        return null;
    }

    public virtual void OnPointerClick(PointerEventData eventData)
    {

        var result = CheckRaycastLocationValid(eventData, ExecuteEvents.pointerClickHandler);
        if (result != null)
        {
            MessageSystem.Instance.SendMessage(MessageDefine.MASK_HIGH_LINGHT_CLICK);

        }
    }

    public virtual void OnPointerEnter(PointerEventData eventData)
    {
        CheckRaycastLocationValid(eventData, ExecuteEvents.pointerEnterHandler);
    }

    public virtual void OnPointerDown(PointerEventData eventData)
    {
        CheckRaycastLocationValid(eventData, ExecuteEvents.pointerDownHandler);
    }

    public virtual void OnPointerUp(PointerEventData eventData)
    {
        CheckRaycastLocationValid(eventData, ExecuteEvents.pointerUpHandler);
    }

    public void OnPointerExit(PointerEventData eventData)
    {
        CheckRaycastLocationValid(eventData, ExecuteEvents.pointerExitHandler);
    }

    public void OnPointerMove(PointerEventData eventData)
    {
        GameObject enterObject = CheckRaycastLocationValid(eventData, ExecuteEvents.pointerMoveHandler);
        CheckAndChangeHover(enterObject, eventData);
    }


    #endregion

#if UNITY_EDITOR
    void OnValidate()
    {
        if (graphic != null)
        {
            graphic.SetVerticesDirty();
            AdditionalCanvasShaderChannels();
        }
    }

#endif
}

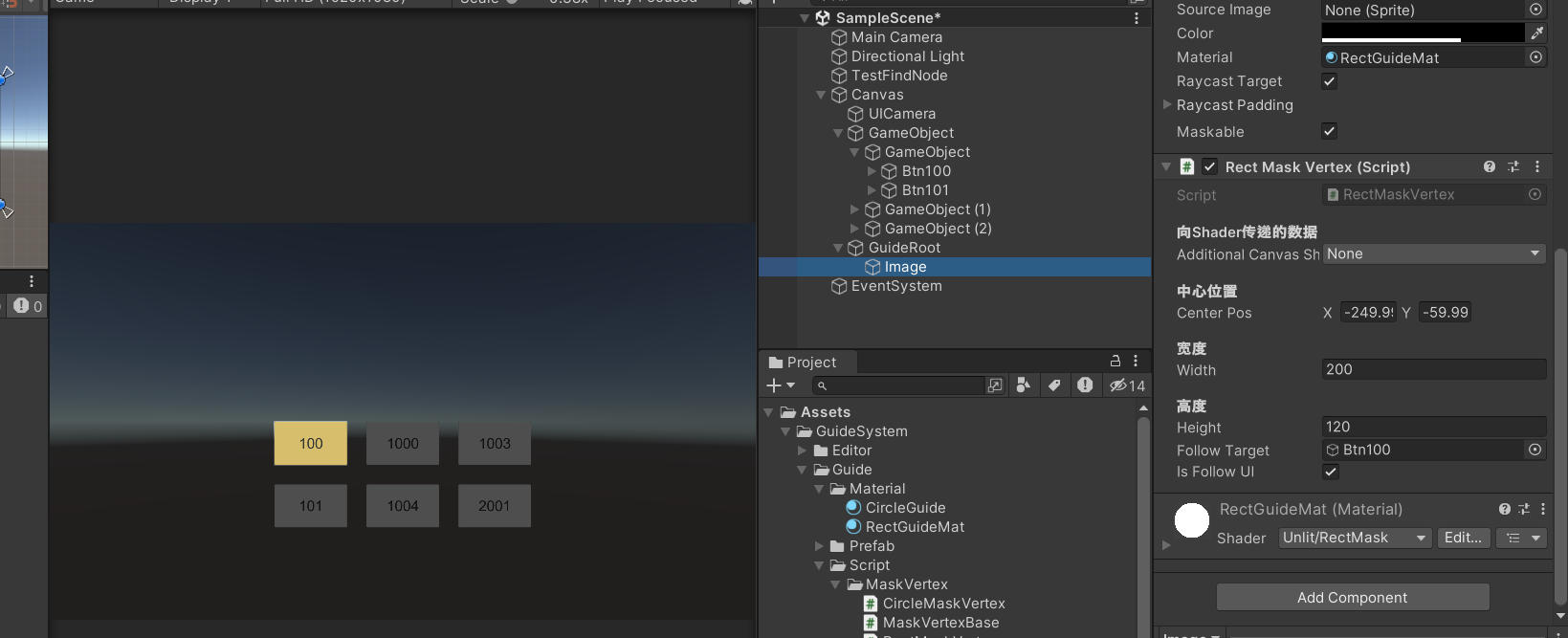

遮罩预览
